Special feature: flat rack collapsible flush folding, with and without rear walls useable, heavy cargos machines, cars, trucks

External / Internal
Length: 6.058 mm 20 ft / Length: 5.898 mm 19 ft 4“
Width: 2.438 mm 8 ft / Width: 2.350 mm 7 ft 7“
Height: 2.591 mm 8 ft 6“ / Height: 2.390 mm 7 ft 8“

Weight table
Tare weight: 3.000 kg / 6610 lb
Max. gross: 34.000 kg / 74950 lb

All dimensions are subject to change. Values may vary.

Flat rack containers are special containers with steel frames for goods and commodities that do not fit in standard containers due to their unconventional bulk. The dimensions of the flat rack containers are that same as standard containers. They have a heavy-duty floor construction. The construction allows the transport of heavy goods, of large machine parts that weigh up to 40,000 kilograms, and vehicles. Load capacities vary depending on the type of construction.
The 20-foot flat rack containers don’t have side walls and or a roof, just the two end walls at the ends, but you can still stack and transport them like standard containers. For the stabilization of the cargo on the side walls, you can also attach steel bars (stanchions).

Special feature:
Due to their design with open walls, flat rack containers are treated like special containers, which means higher shipping costs. In addition, transported goods and commodities must be stabilized and secured separately.

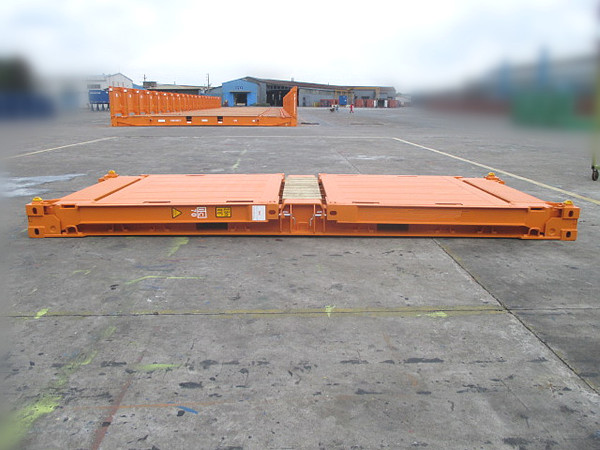

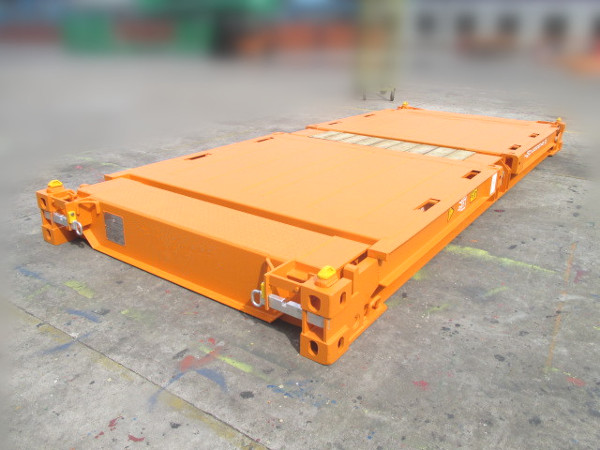

Collapsible flat racks:
There are two types of flat rack containers; fix ended and collapsible. The fix ended flat rack container cannot be folded. With collapsible flat racks, you can fold in the front walls. The containers then become a platform so that you can stack empty containers.
